LED Generator Dental Handpieces

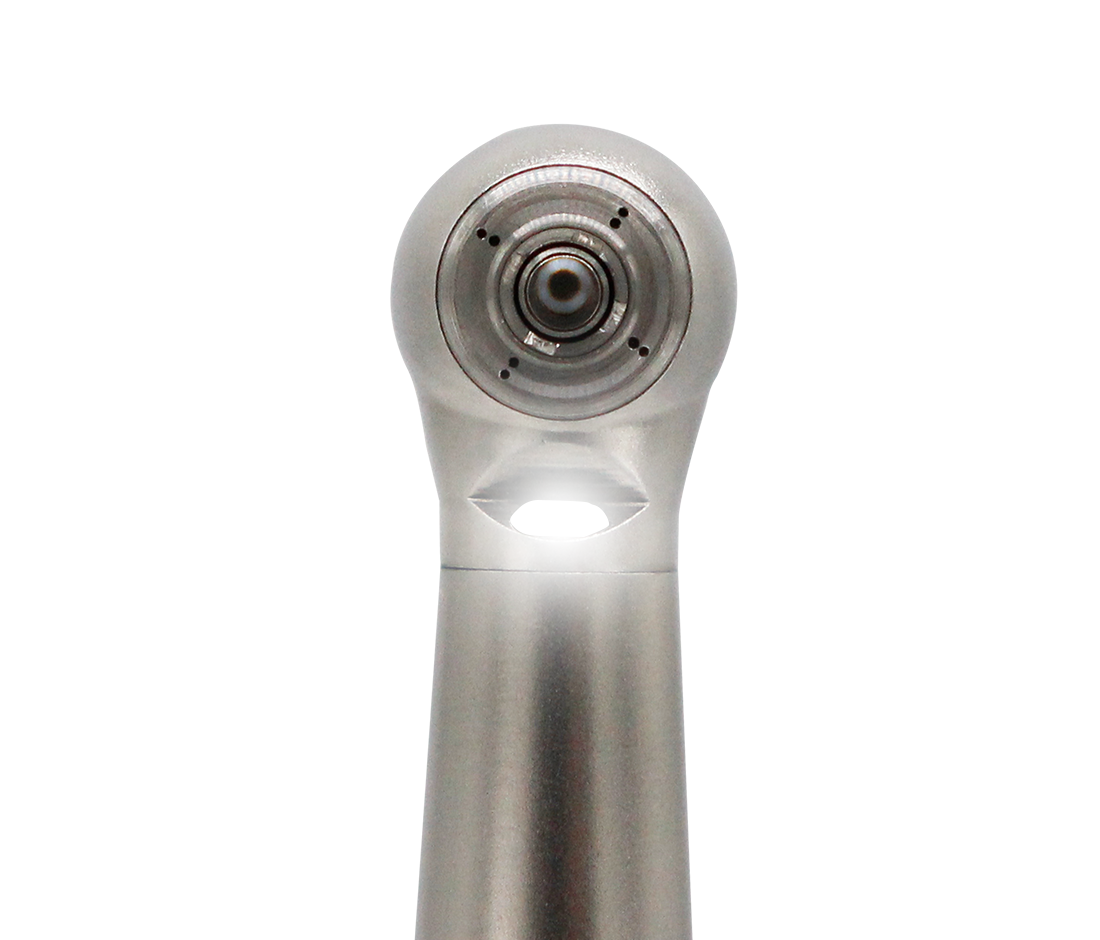

Protective Head Design
Water-air seperate with anti-retraction mechanism, could stops blood and foreign matter entering the head. Reduce the risk of cross-contamination.

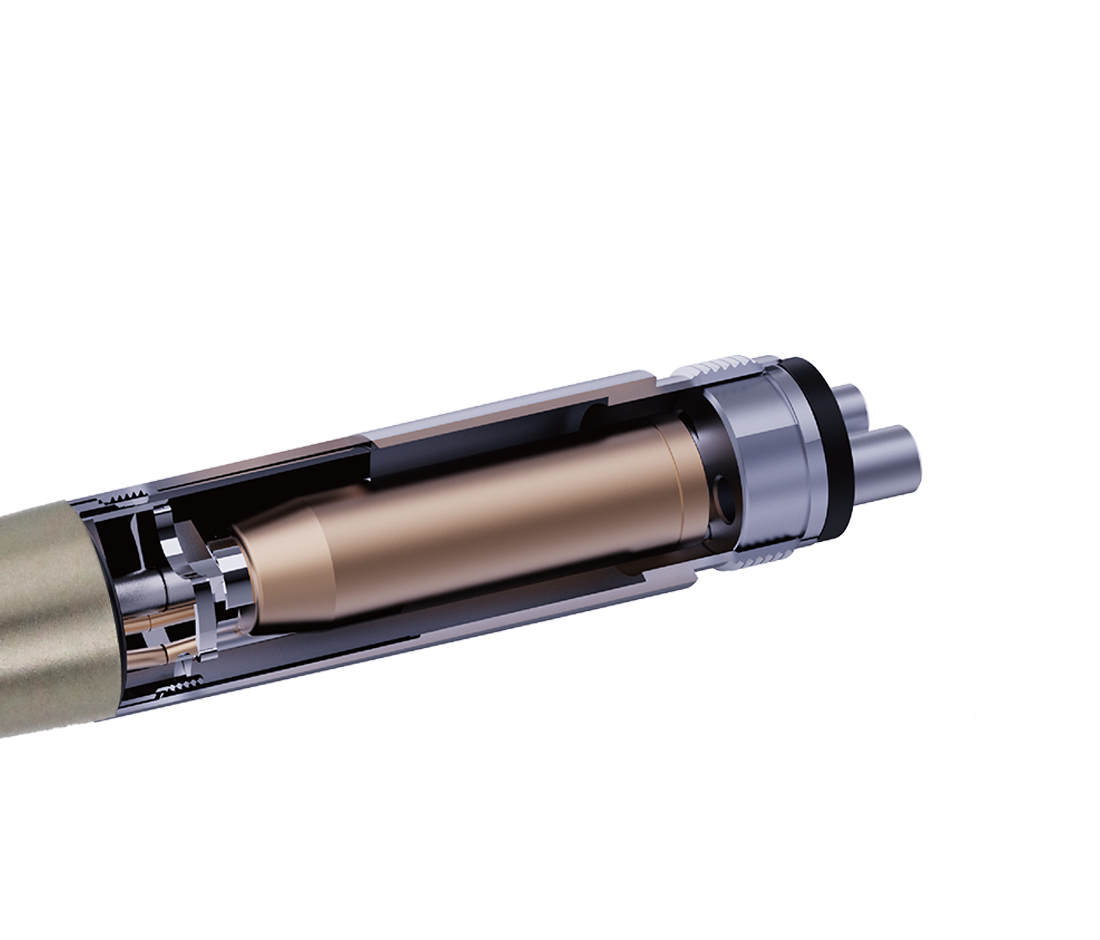

Powerful Micro Generator
Built-in micro generator provides LED light to handpiece.

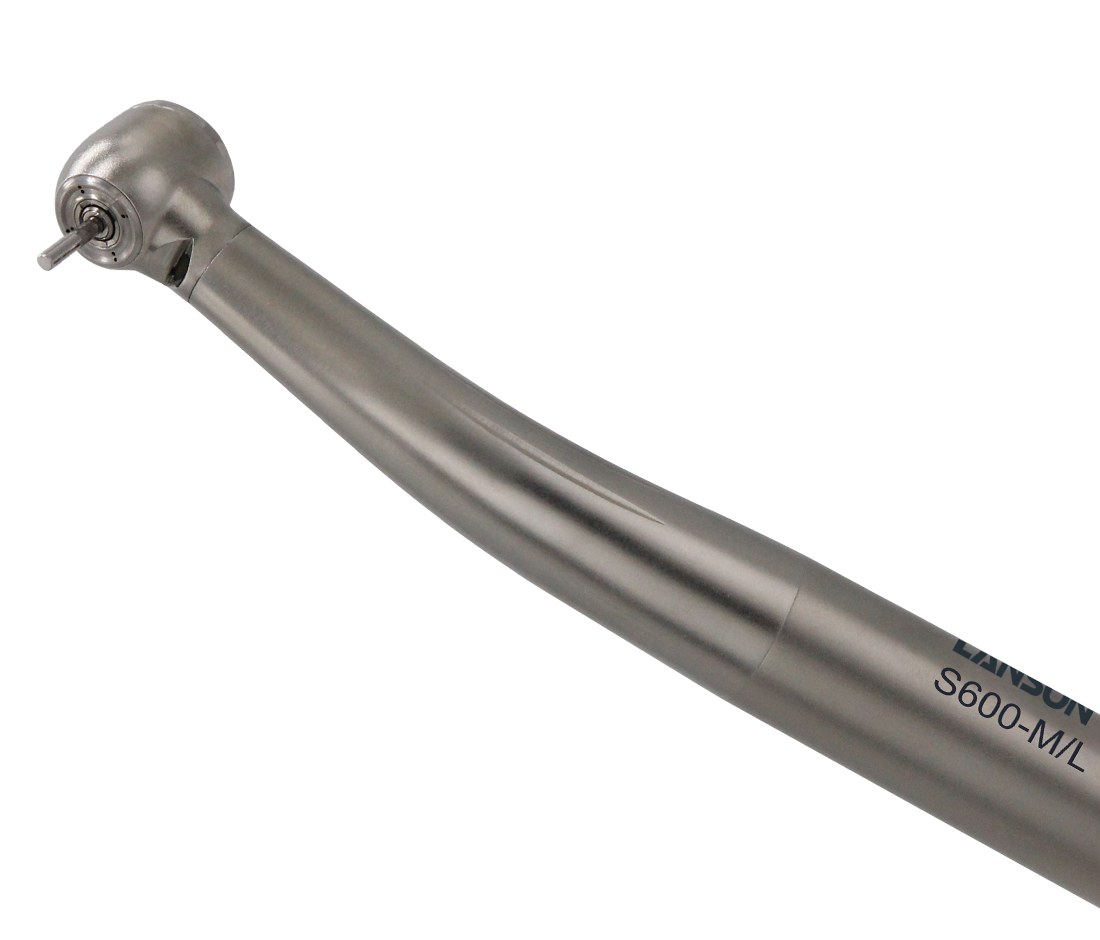

Stainless steel Body
306 stainless steel is used for the body. Drop-resistant.
LED Generator High Speed Dental Handpiece
Using precise micro generator resulting in high performance and long term reliability.
Integrated power generator delivers quality LED illumination directly when connected to regular tubing, no need extra fiber optic system, low cost and easy.
Body applied stainless steel materials to achieve durability and stable.
Features
Effectively cools the entire surface of the bur with a high cooling effect.
Spindle radial runout less than 0.008mm.
During operation, ensure stable air pressure.
Avoid too high air pressure to cause bearing damage.
Push button type, using KV spindle with powerful chuck force.
Chuck force more than 3KG.
Specification

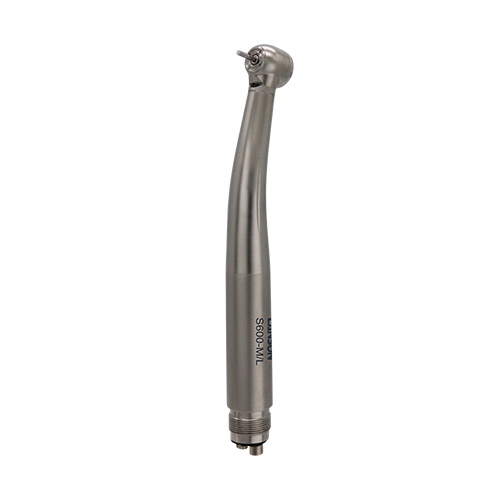

Model: S600-M/L
Head Size(mm): ø12.5*13.6
Light Source: LED-Generator
Speed(RPM): ≥350,000
Power: 28W
Water Spray: 4
Noise: ≤65dB
Chuck Type: Push Button
Connection: 4-Hole /
2-Hole(S600B-L)

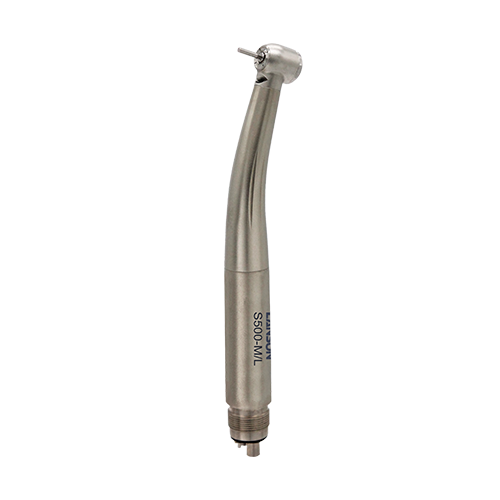

Model: S500-M/L
Head Size(mm): ø11.2*13
Light Source: LED-Generator
Speed(RPM): ≥380,000
Power: 23W
Water Spray: 4
Noise: ≤65dB
Chuck Type: Push Button
Connection: 4-Hole
2-Hole(S500B-L)

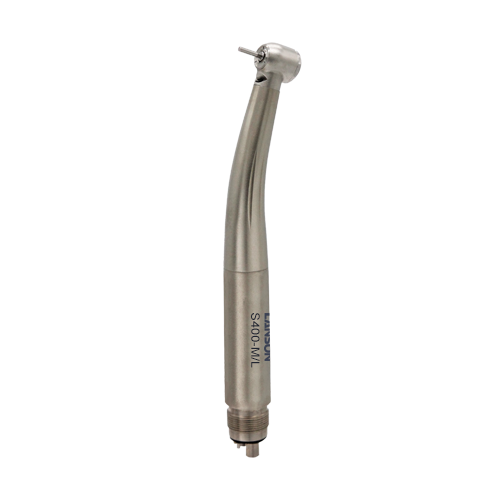

Model: S400-M/L
Head Size(mm): ø9.2*11.2
Light Source: LED-Generator
Speed(RPM): ≥350,000
Power: 20W
Water Spray: 3
Noise: ≤65dB
Chuck Type: Push Button
Connection: 4-Hole
